Balancers

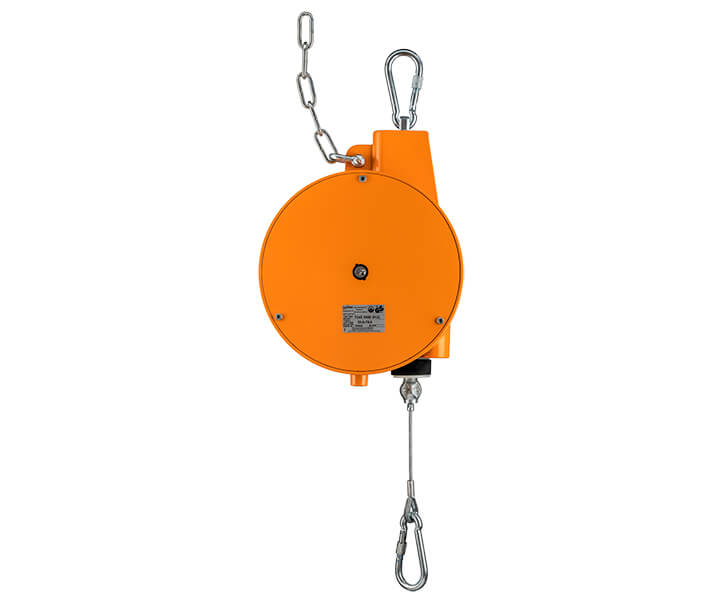

TYPE 7245
Load range: 55.0 - 125.0 kg | Cable travel: 1800 mm
- Cable travel: A longer cable is available upon request
- Compact design with a single suspension spring
- Freely rotating and swivelling screw-type spring hook for suspension
- Housing and housing cover of high-strength chill-cast aluminum
- Cable drum of high-strength chill-cast aluminum
- Closed ball bearings • High-strength special suspension spring • High-strength steel cable • Infinitely adjustable cable stop buffer • Infinitely variable load setting via endless screw
- Closed unit
- Rigid, impact-resistant design
- Suspension via screw-type spring hook (rotating and swivelling design)
- Includes safety expansion chain as fall protection
- Integrated mechanism for locking the cable drum
- High-strength special suspension spring
- Spring fracture safeguard is standard
- Cable overload protection via cable extension limit stop
- Screw-type spring hook for load suspension
- GS-certified
| Item |
GTIN |
Load rangein kg |
Cable travelin mm |
Own weightin kg |
InquiryPrice |
| 7245 0000 01 |
4262403195929 |
55,0 - 70,0 |
1800 |
22,7 |
|
| 7245 0000 02 |
4262403195936 |
70,0 - 85,0 |
1800 |
24,2 |
|
| 7245 0000 03 |
4262403195943 |
85,0 - 95,0 |
1800 |
25,0 |
|
| 7245 0000 04 |
4262403195950 |
95,0 - 110,0 |
1800 |
26,3 |
|
| 7245 0000 05 |
4262403195967 |
110,0 - 125,0 |
1800 |
26,4 |
|
