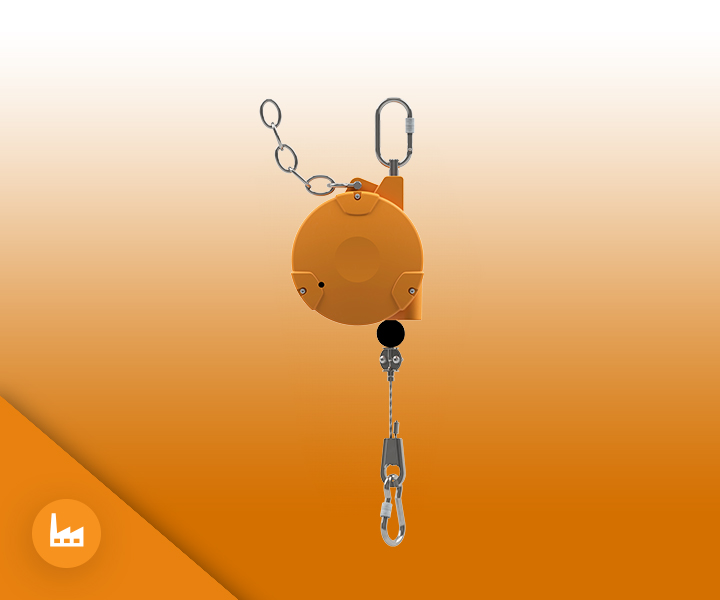

Balancers
Type 7228
Load range: 0.4 - 6.5 kg | Cable travel: 1600 mm
- Cable length: A longer cable (rope) is available upon request
- Safe suspension with freely rotating and swivelling screw-type spring hook
- Housing of very impact-resistant and abrasion-resistant plastic
- Housing cover of painted sheet steel
- Cable drum of high-strength, abrasion-resistant plastic
- High-strength special suspension spring
- High-strength steel cable
- Infinitely adjustable cable stop buffer
- Cable wedge allows infinite adjustment of cable length
- Screw-type spring hook for load suspension
- Simplified load setting
- Option: Manual lock system
- Closed unit
- Rigid, impact-resistant design
- High-strength special suspension spring
- Closed unit
- Rigid, impact-resistant design
- Electrically insulated suspension via screw-type spring hook (freely rotating and swivelling design)
- Includes safety chain as fall protection
- Mechanism for locking the cable drum
- High-strength special suspension spring
- Spring fracture safeguard starting at 3.0 kg load capacity
- Includes ferrule for securing the cable end
- Screw-type spring hook for load suspension
- GS-certified
| Item |
GTIN |
Load rangein kg |
Cable travelin mm |
Own weightin kg |
InquiryPrice |
| 7228 0000 01 |
4262403192379 |
0,4 - 1,2 |
1600 |
1,3 |
|
| 7228 0000 02 |
4262403192447 |
1,2 - 2,6 |
1600 |
1,4 |
|
| 7228 0000 03 |
4262403192546 |
2,6 - 3,8 |
1600 |
1,5 |
|
| 7228 0000 04 |
4262403192621 |
3,8 - 5,2 |
1600 |
1,5 |
|
| 7228 0000 05 |
4262403192683 |
5,2 - 6,5 |
1600 |
1,5 |
|
