Balancers
TYPE 7241
Load range: 12.0 - 100.0 kg | Cable travel: 2000 mm
- Cable travel: A longer cable is available upon request
- Freely rotating and swivelling safety hook for suspension, adjustable
- Housing and housing cover of high-strength pressure-cast aluminum
- Cable drum of high-strength pressure-cast aluminum
- Closed ball bearings on both sides
- High-strength, encapsulated special suspension spring
- High-strength steel cable • Infinitely adjustable cable stop buffer
- Cable wedge allows infinite adjustment of cable length
- Screw-type spring hook for load suspension
- Infinitely variable load setting via endless screw
- Patented freewheel protects against overrotation when the spring is released

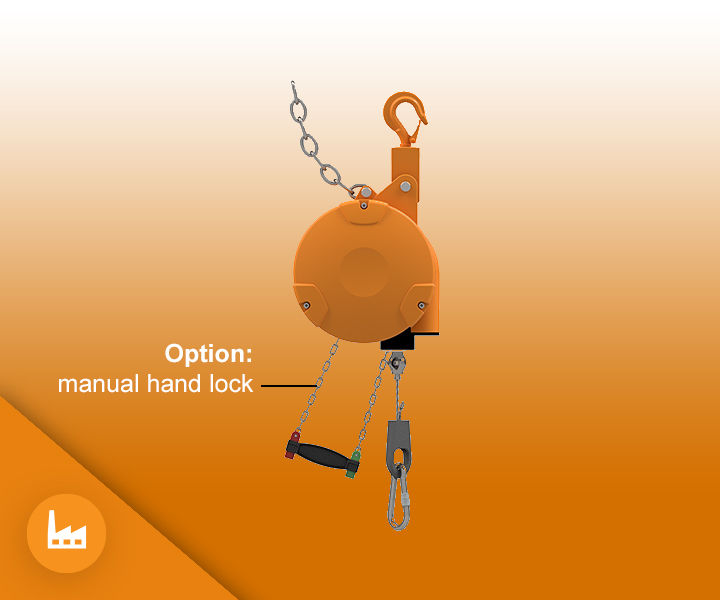

- Available with and without manual lock.
- Closed unit
- Rigid, impact-resistant design
- Suspension via safety hook (freely rotating and swivelling design)
- Includes safety expansion chain as fall protection
- Integrated mechanism for locking the cable drum
- High-strength, encapsulated special suspension spring
- Patented freewheel protects against overrotation when the spring is released
- Spring fracture safeguard is standard
- Cable overload protection via cable extension limit stop
- Includes ferrule for securing the cable end
- Screw-type spring hook for load suspension
- GS-certified
| Itemw/o manual lock |
GTINw/o manual lock |
Itemwith manual lock |
GTINwith manual lock |
Load rangein kg |
Cable travelin mm |
Own weightw/o manual lock in kg |
Own weightwith manual lock in kg |
InquiryPrice |
| 7241 0800 01 |
4262403198111 |
7241 0800 81 |
4262403197510 |
12,0 - 20,0 |
2000 |
14,8 |
15,0 |
|
| 7241 0800 02 |
4262403198135 |
7241 0800 82 |
4262403197541 |
20,0 - 30,0 |
2000 |
15,2 |
15,4 |
|
| 7241 0800 03 |
4262403198159 |
7241 0800 83 |
4262403197565 |
30,0 - 45,0 |
2000 |
16,9 |
17,1 |
|
| 7241 0800 04 |
4262403198173 |
7241 0800 84 |
4262403197589 |
45,0 - 60,0 |
2000 |
17,3 |
17,5 |
|
| 7241 0800 05 |
4262403198210 |
7241 0800 85 |
4262403197602 |
60,0 - 75,0 |
2000 |
18,7 |
18,9 |
|
| 7241 0800 06 |
4262403198258 |
7241 0800 86 |
4262403197626 |
75,0 - 90,0 |
2000 |
19,7 |
19,9 |
|
| 7241 0800 07 |
4262403197787 |
7241 0800 87 |
4262403197657 |
90,0 - 100,0 |
2000 |
19,9 |
21,1 |
|
